1/2” Super Flexible RF Coaxial Cable
|
 |
| Type Type No. |
Standard cable HCAHY-50-9
Fire-retardant cable HCAHYZ-50-9 |

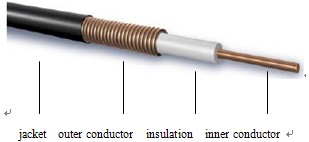

| Construction |
Inner
conductor |
Material |
CCA |
| Diameter（mm） |
3.55±0.05 |
| Insulation |
Material |
Foamed PE |
| Diameter（mm） |
9.0±0.2 |
Outer
conductor |
Material |
Helical corrugated copper tube |
| Diameter（mm） |
12.1±0.1 |
| Jacket |
Material |
LLDPE or fire-retardant PE |
| Min.thickness（mm） |
＞0.5 |
| Diameter（mm） |
13.6±0.2 |
| Mechnical Characteristics |
| Bending radius（mm） |
Single bend |
17 |
| Repeated bend |
55 |
| Tensile strength（N） |
1000 |
| Cable weight（kg/km） |
140 |
| Recommended temperature（℃） |
Storage |
-70~+85 |
| Installation |
-40~+60 |
| Operating |
-55~+85 |
|
| Products meet the RoHS requirement, and according to the requirements of RoHS, you can see the RoHS mark on the outside package. |
|
| Electrical Characteristics |
| Inner conductor DC resistance（Ω/km） |
2.97 |
| Outer conductor DC resistance（Ω/km） |
3.54 |
| Characteristic impedance（Ω） |
50±1 |
| Capacitance（p F/m） |
80 |
| Velocity（%） |
82 |
| Dielectric strength（KV） |
3.0 |
| Insulation resistance（MΩ/km） |
＞1×104 |
| Peak power rating（KV） |
15.6 |
| Peak voltage（V）） |
1400 |
| Cut-off frequency（GHz） |
17.0 |
| Attenuation |
Frequency
（MHz） |
Attenuation
（@20℃，d B/100m） |
Average power（kv） |
| 150 |
3.91 |
2.12 |
| 450 |
7.16 |
1.19 |
| 800 |
9.88 |
0.88 |
| 900 |
10.55 |
0.82 |
| 1000 |
11.20 |
0.78 |
| 1500 |
14.12 |
0.62 |
| 1800 |
15.70 |
0.56 |
| 2000 |
16.69 |
0.53 |
| 2200 |
17.64 |
0.50 |
| 2500 |
19.03 |
0.46 |
| 3000 |
21.21 |
0.42 |
| VSWR |
| 800MHz~1000MHz |
1.10 |
| 1700MHz~2000MHz |
1.13 |
| 2100MHz~2400MHz |
1.13 |
|
Note：
For fire-retardant jackter cable，recommended temperature：
Storage：-30℃~+80℃
Installation：-25℃~+60℃
Operating temperature：-30℃~+80℃ |
|
